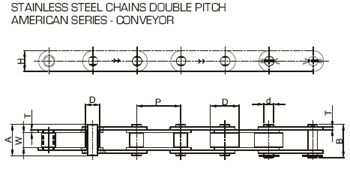

Paslanmaz Çelik Zincirler Çifte Pitch Amerikan Serisi (Konveyor)
| Intl Ref. No. |
ROMBO Chain No. |
Pitch (P) |
Width Between Inner Plates (W) (Min) |
Roller Dia (D) (Max) |
Plate Height (H) (Max) |
Bearing Pin Dia (d) (Max) |
Width Over Bearing Pin (A) (Max) |
Width Over Joint Fasteners (B) (Max) |
Avg. Weight Per Metre (Kg) |
Tensile Strength (KN) (Min) |
| A 2040 | E08A 01SS 01 | 25.40 | 7.85 | 7.92 | 11.66 | 3.96 | 17.80 | 21.80 | 0.41 | 11.00 |
| A 2050 | E102 01 SS 01 | 31.75 | 9.40 | 10.16 | 13.90 | 5.08 | 21.80 | 25.90 | 0.66 | 17.00 |
| A 2060 | E121 01 SS 01 | 38.10 | 12.58 | 11.91 | 18.18 | 5.94 | 26.90 | 31.50 | 1.03 | 24.80 |
| A 2080 | E161 01 SS 01 | 50.80 | 15.75 | 15.88 | 24.10 | 7.92 | 33.50 | 38.90 | 1.62 | 41.00 |
